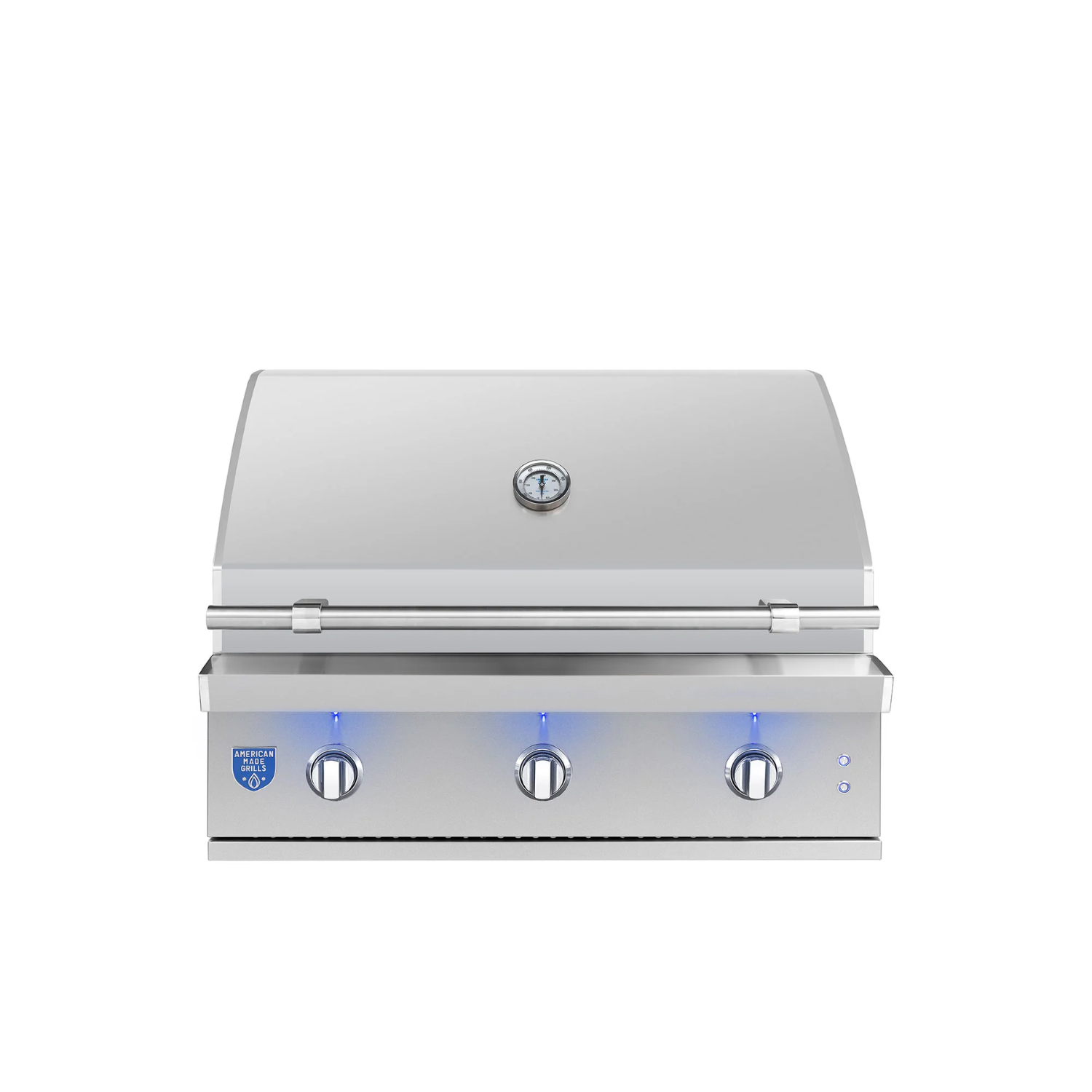

Atlas 36-Inch Built-In Gas Grill (ATS36-B) by American Made Grills
The Atlas 36” Built-In Gas Grill is a US-made appliance designed for high performance and durability in luxury outdoor kitchens. It features robust stainless steel construction, powerful heating capabilities, and several modern conveniences.
This grill is manufactured in California, factory-tested, and supported by a lifetime warranty on its stainless steel components and flame tamers.
Core Specifications
-
High-Power Burners: The grill is equipped with three U-tube stainless steel burners, each producing 16,500 BTUs for a combined total of 49,500 BTUs. This design aims to provide intense, even heat across the cooking surface.
-
#304 Stainless Steel Construction: It is built with #304 stainless steel, featuring an 18-gauge double-lined hood, heavy-duty 8mm square cooking grates, and a removable drip tray that is safe for dishwasher cleaning.
-

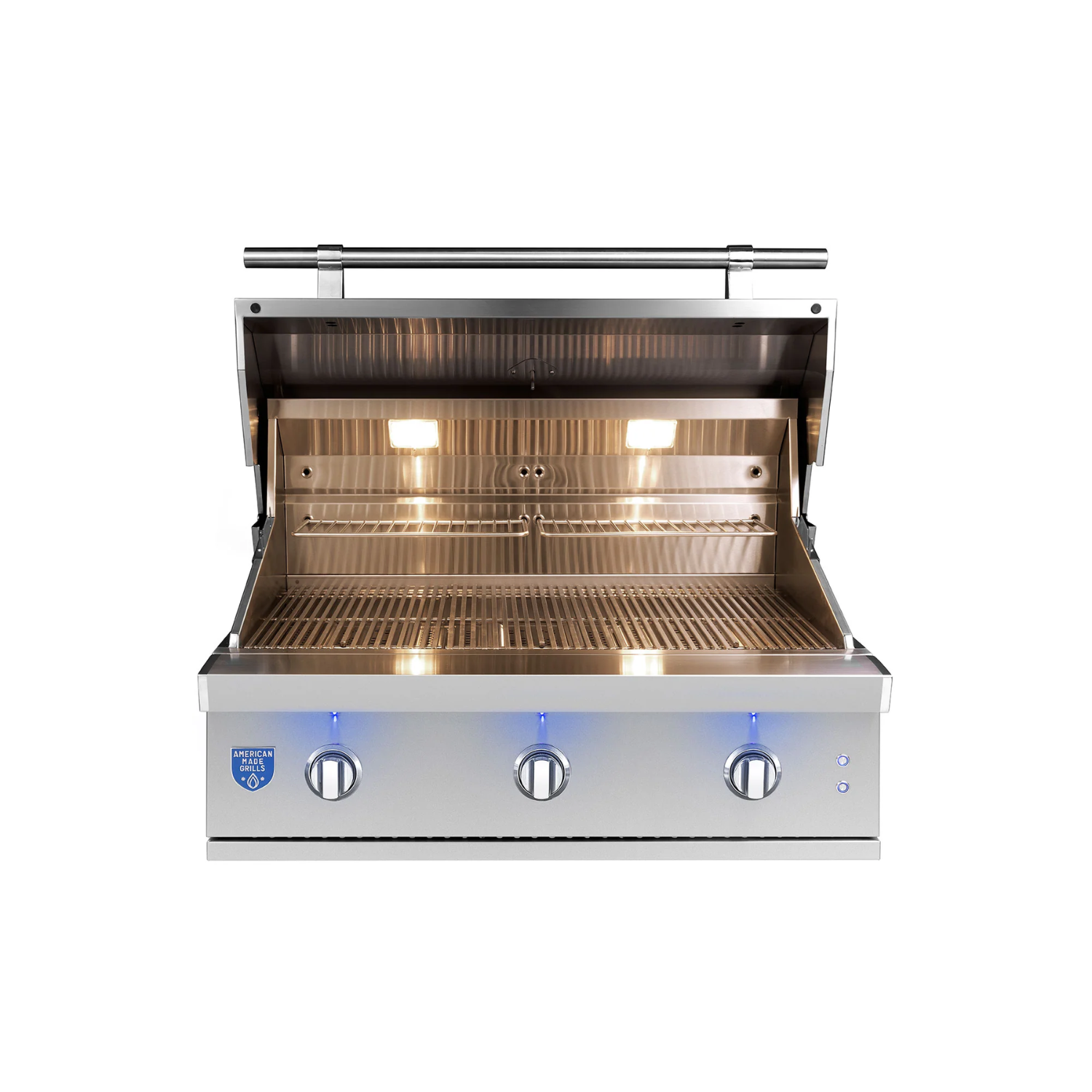

Integrated Lighting: For grilling at night, the grill includes LED backlighting for the control knobs and internal halogen lights to illuminate the cooking area.
-
Heat Distribution System: It uses ceramic briquette trays that are easy to clean. This system is designed to distribute heat evenly, vaporize drippings to create flavor, and reduce flare-ups.
-
Warming Racks: The grill includes dual-position warming racks for flexible cooking. It also features a convenient storage rack for the warming racks located under the hood.
Design and Function
With a total cooking area of 853 square inches (counting the main surface and warming rack), the Atlas 36 offers a substantial grilling space. It is available in both natural gas and propane configurations, making it a versatile option for various built-in or modular outdoor kitchen installations.
Specification
| Specification | Details |
|---|---|
| Brand | American Made Grill |
| Fuel Type | Natural Gas / Propane |
| Collection | Atlas |
| Configuration | Built-In |
| Waranty | Limited Lifeime |
| Exterior Material | Stainless Steel |
| Number of Main Burners | 3 Burners |
| Total BTUs | 49500 |
| Burner Type | U-Shape |
| Main Burner Material | Stainless Steel |
| Flame Tamer Material | Ceramic |
| Cooking Grate Material | Stainless Steel |
| Cooking Grid Dimensions | |
| Main Grilling Area | 628 Sq. Inches |
| Warming Rack | Yes 225 Sq. Inches |
| Total Grilling Area | 853 Sq. Inches |
| Rotisserie Burner BTUs | None |
| Conversion Kit Included | No |
| Hose Kit Included | Only LP Hose |
| Rotisserie Kit Included | No |
| Includes Smoker Box | N/A |
| Ignition Type | Flame Thrower |
| Flash Tubes | No |
| Grill Lights | Yes |

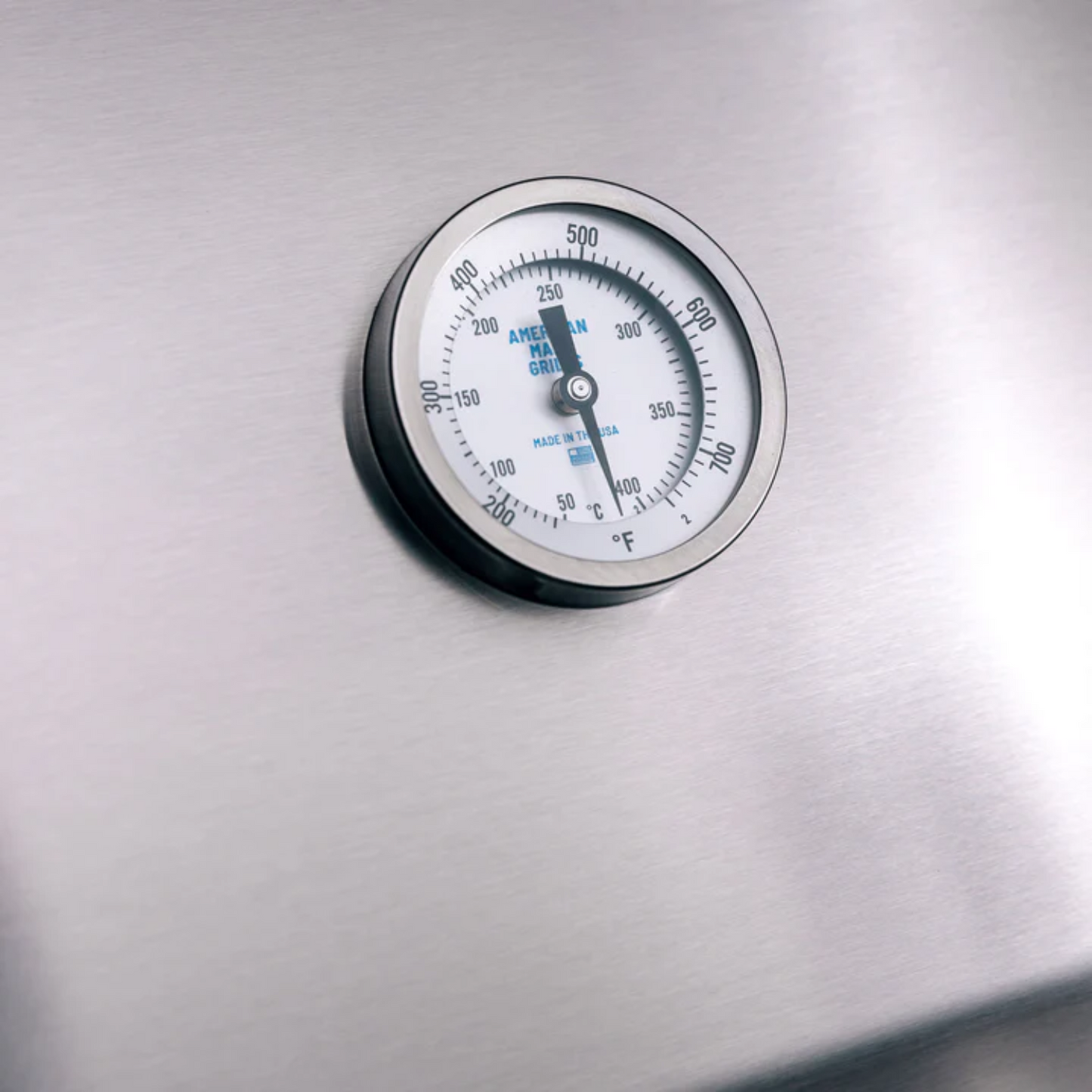

| Thermometer | Analog |
| Made in USA | Yes |
| Marine Grade | No |
| Spring Assisted Hood | Yes |
| UPC / Model # | ATS36-B |
Dimensions
| Dimension Type | Measurement |
|---|---|
| Overall Width | 36″ |
| Overall Height | 26″ |
| Overall Depth | 26″ |
| Cutout Width | 34″ |
| Cutout Height | 10″ |
| Cutout Depth | 19 3/4″ |
| Weight | 200 LBS |
