Key Features
3/8 inch thick 304 stainless steel for ideal heat retention and distribution
- Two hot surface ignition burners for dual zone cooking
- Control knobs are back-lit
- Two removable grease tray troughs make for easy cleaning
- Stainless steel cover is included

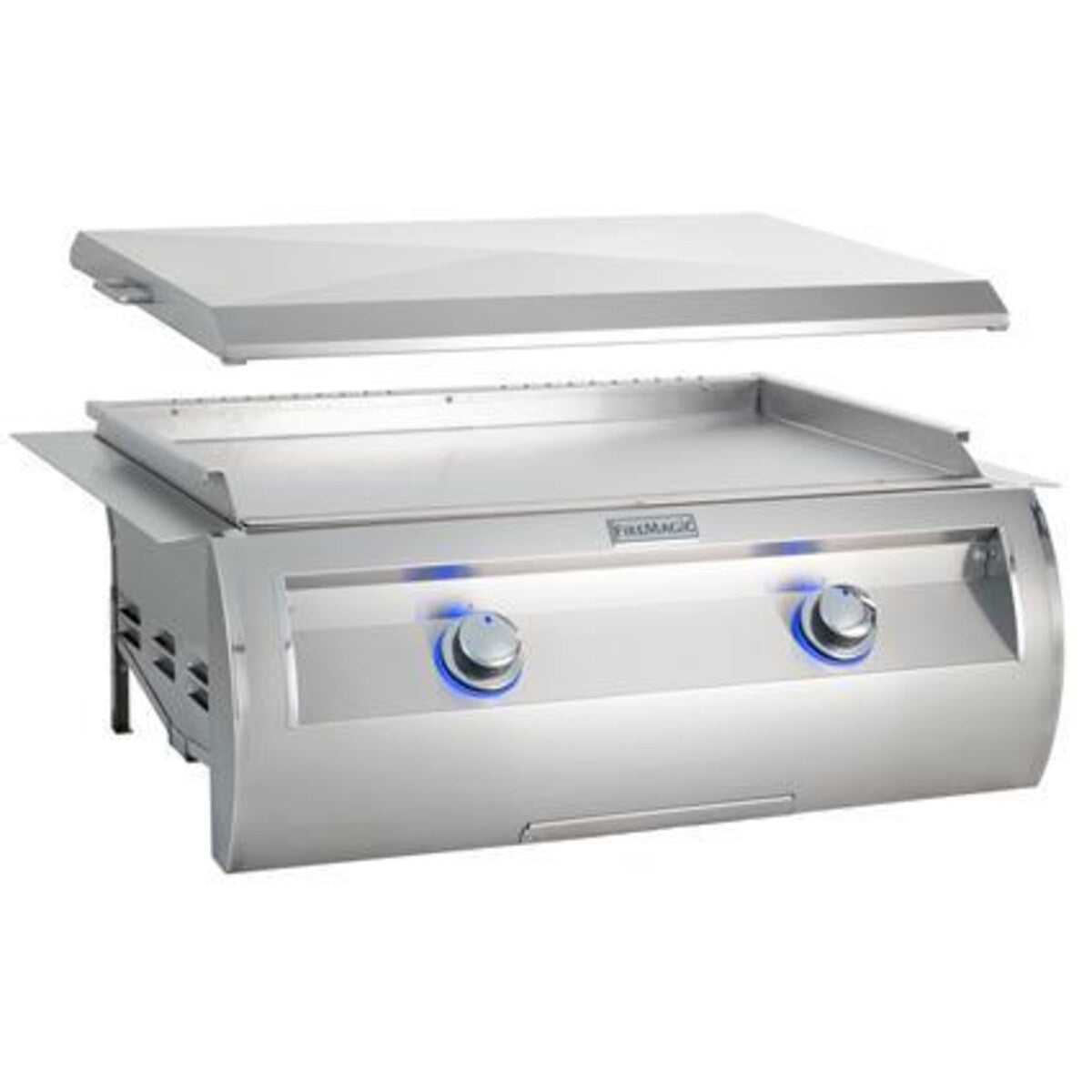

When only the best will do, Fire Magic offers the Echelon Diamond series, combining the ultimate in performance, beauty and innovation. The Fire Magic Echelon Diamond E660 30-Inch Built-in Propane Gas Griddle adds excitement and variety to your outdoor cooking with fried rice, pancakes, fajitas, and much more. The 304 stainless steel construction is 3/8 inch thick for a warp-free performance to last for years. Two stainless steel burners are lit using hot surface ignition and produce up to 40,000 BTUs. The two back-lit control knobs allow for dual zone cooking so that you can cook different food at different temperatures at the same time. You can also cook for a party on the 30 inch by 18 inch cooking surface. The grease pan is easy to clean thanks to the removable trays. A stainless steel cover is included to protect the griddle when it is not in use. All Echelon grills come with a free custom laser inscribed personalized name plate that will require filling out and mailing in the form that comes with the grill and manual. Once received, the custom name plate will be shipped back free of charge.
Legal disclaimers and warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
Specifications
| Number Of Main Burners | 2 Burners |
|---|---|
| Grilling Surface BTUs | 40000 |
| Infrared Main Burner | Not Available |
| Exterior Material | Stainless Steel |
| Class | Luxury |
| Fuel Type | Propane |
| Collection | Echelon Diamond |
| Configuration | Built-In |
| Made In USA | Yes |
| Size | Medium (27 - 33") |
| Hose Included | Yes |
| Commercial | No |
| Series | 30 Inch |
| Stainless Steel Grade | 304 Stainless Steel |
| Marine Grade | No |
| Primary Color | Stainless Steel |
| Grill Lights | None |
| Hamburger Data | 24 |
| Rear Burner Rotisserie | No |
| Ignition Type | Hot Surface |
| Includes Smoker Box | No |
| WiFi/Bluetooth Enabled | None |
| Cutout Width | 31 1/4" |
| Cutout Depth | 23 1/2" |
| Cutout Height | 12" |
| Quick Ship | Yes |
| Total Cooking Capacity | 540 Sq. Inches |
| Main Burner Material | Stainless Steel |
| Cooking Grate Material | Stainless Steel |
| Rotisserie Kit | No |
| Rotisserie Burner Btus | No Rear Burner |
| Cooking Grid Dimensions | 30 X 18" |
| Heat Zone Separators | No |
| Flash Tubes | Yes |
| Spring Assisted Hood | No |
| Thermometer | None |
| Model Number | E660i-0T3P |
Dimensions
| Width | 35.75" |
|---|---|
| Height | 14" |
| Depth | 30" |
Learning Center
Related Articles
Manufacturer Downloads
Warranty
){kind=icon}
Fire Magic provides a lifetime warranty for cast stainless burners, stainless cooking grids and housings. All other components (except ignition and electronic parts) for three years, ignition systems (except batteries) and electronic components (including lights & thermometers) for one year.
Refer to manufacturers manual for full warranty details.
Refer to manufacturers manual for full warranty details.
